Airspace diagram referenced in 'Air Warriors' (by Doug Waller)

[danpass]

Early on in the book there is a reference to a visual representation of the airspace rules/regulations/etc, described as two intersecting triangles.

Anyone have a copy/link?

thanks

(search for airspace, airspace diagram, diagram was inconclusive)



[John wright]

Are we talking just regualar civilian airspace A,B,C,D,E,G?



[danpass]

I don't remember that it specified but it was in the firehose portion of training.



[John wright]

I don't remember that it specified but it was in the firehose portion of training.

I have no clue what that is. I am not a SNA.... yet.



[Swanee]

There was something like that I remember from IFS. It was just a big triangle explaining VFR wx mins for each class of airspace- is that what you're looking for?



[John wright]

http://www.aopa.org/asf/publications/sa02.pdf

If we are talking USA airspace look at page 14 of above



[danpass]

There was something like that I remember from IFS. It was just a big triangle explaining VFR wx mins for each class of airspace- is that what you're looking for?

that does sound like it.



[Swanee]

that does sound like it.

I'm not sure if I still have it, but I'll see if I can't dig it up for you. I hope it isn't time critical, as I just PCS'd and still have an entire room full of unopened boxes.



[ac2NASTY]

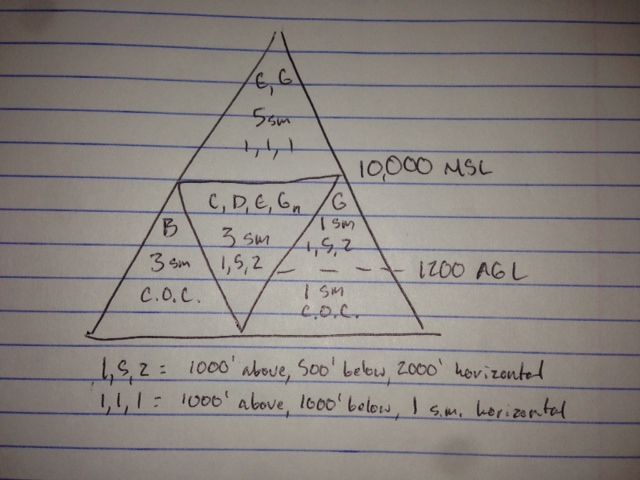

Here is my version of it. I made it to help me get through the IFS exams. Fill in your own way to memorize it as mine is not G rated.



[danpass]

I'm not sure if I still have it, but I'll see if I can't dig it up for you. I hope it isn't time critical, as I just PCS'd and still have an entire room full of unopened boxes.

Thanks. Not time critical.

Here is my version of it. I made it to help me get through the IFS exams. Fill in your own way to memorize it as mine is not G rated.

Thanks. Looks like a good starting point.
I've often seen the diagram ref'd earlier by John Wright but it just doesn't click lol and I had thought of making my own triangle. I'll likely do it anyway and use this as a check.



[ea6bflyr]

Here's an easier site: http://www.flytandem.com/airspace.htm



[Aviation Jones]

This topic is very old, I'm sure the OP is not worried about API at this point. But, this might be it?



[JollyGood]

This topic is very old, I'm sure the OP is not worried about API at this point. But, this might be it?

I found that diagram to be too much of a headache. Then again, I still have to think for at least 10 seconds when someone asks me a question about flight rules. I chalk it up to my brain switching to shutdown mode after finishing up the Nav test. That, or the beer consumption post said Nav test. Yeah, probably the beer.



[Napper]

A simpler variation of the same chart:



[TxSNA2013]

A simpler variation of the same chart:

would have done so much better on my IFS exams if I would have studied this lol
